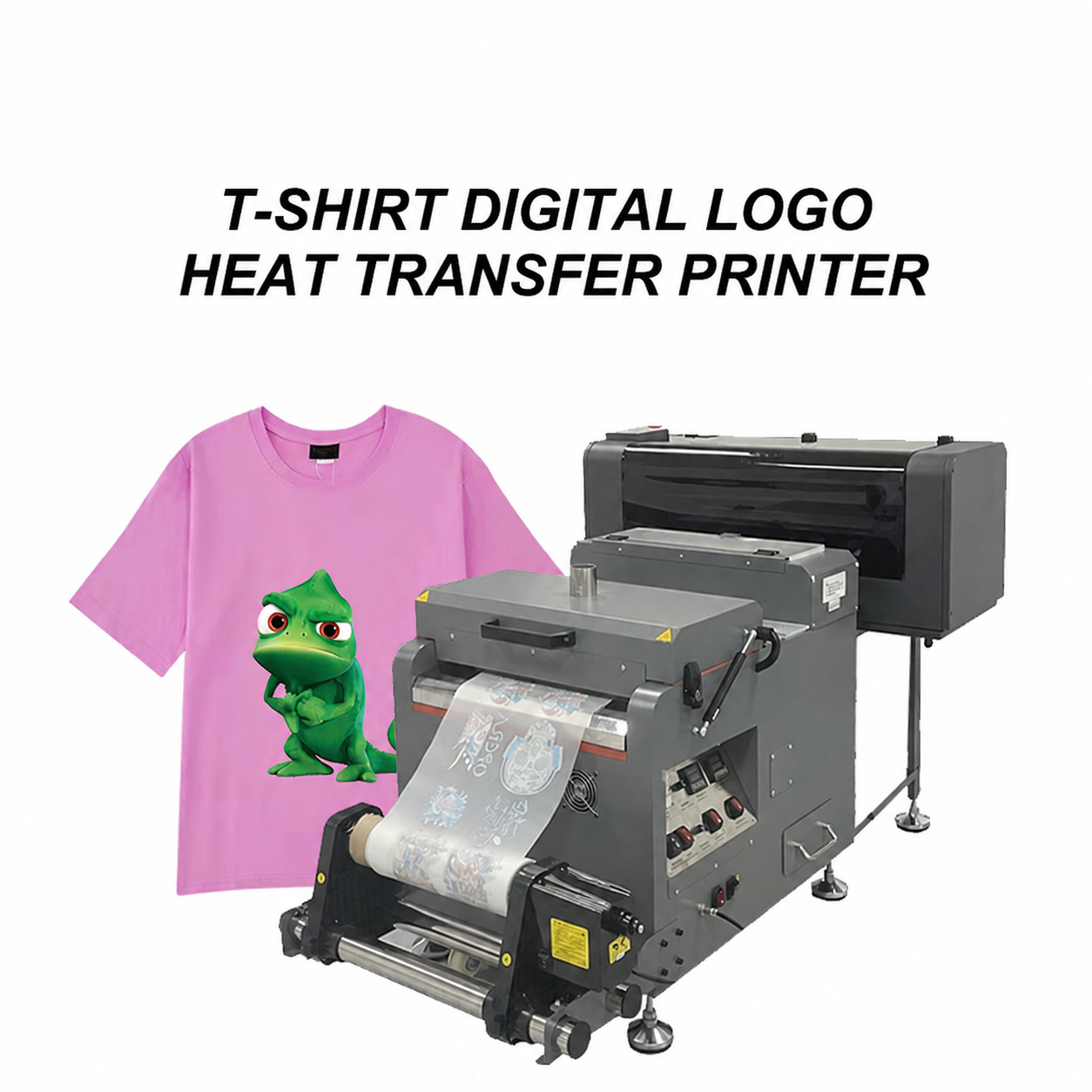

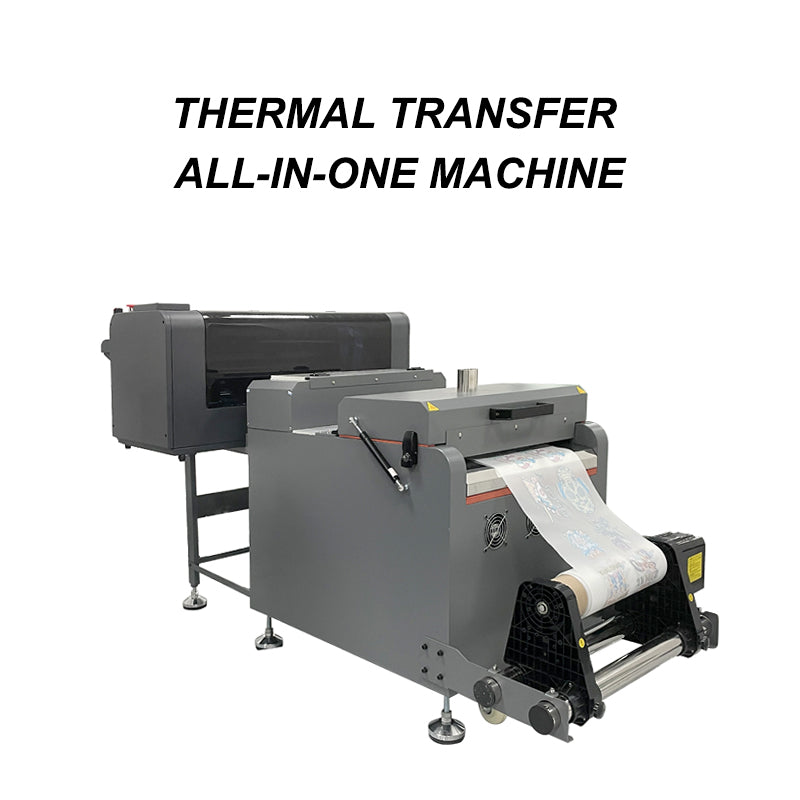

Small size, light weight, high productivity, easy to operate all-in-one transfer printer, widely used, can be applied to the packaging of textiles, glass, wood, plastic, etc.
Machine power :2800w~3800w
Machine voltage :220V
Machine weight :160kg
Machine size :1700mm*850mm*1560mm
Degree of automation :Semi-Automatic
Machine Name :Digital offset hot stamping printer
Keyword :T Shirt Transfer Printer
MOQ :1
Product name :T Shirt Transfer Printer
|
Printing Machine
|
Product name |
Digital offset hot stamping printer |
Number of nozzles |
4 （White & Color） |
|
Nozzle model |
EPSON-I3200 |
Machine model |
KW-602 |
|
|
Print wide |
650MM |
Printing accuracy |
400*8=3200DPI |
|
|
Heating system |
The front, middle and rear sections are heated independently |
Color Management |
ICC |
|
|
Print media |
Pet hot stamping film / hot and cold tearing |
Printing software |
Maintop |
|
|
Ink |
Paint ink (ECO) color: C/M/Y/K+W capacity 1000ml ； Color gamut: 16.4million Supply: continuous Firmness: grade 4.5 |
|||
|
Printing speed |
4PASS：Draft 7m2/h 6PASS：Production 5m2/h 8PASS：Fine 3.5m2/h |
|||
|
operating system |
Windows win7/win 10 |
Network interface |
Network cable / RJ-45 / gigabit network |
|
|
Power Supply |
50HZ/60HZ,220V/1 10V 10A |
Machine size |
1700 mm* 850* 1560mm |
|
|
Package size |
1990mm*870mm*780mm |
Machine weight |
160KG |
|
|
Epson Inkjet Head I Series |
Product name |
I3200-U1 |
I3200-E1 |
I3200-A1 |
|
Ink type |
UV |
Eco solvent |
Aqueous |
|
|
Width*Depth*Height |
69.15*9.4 *35.6 mm |
Weight |
82g |
|
|
Number of nozzle |
3200 |
Nozzle pitch/nozzle row |
1/300 inch |
|
|
Nozzle rows |
8 rows |
Nozzle Resolution |
300 npi /row 600 npi/2 rows |
|
|
Max, number of colour inks |
4 colours |
Effective print width |
33.8 mm (1.33 inches) |
|
|
Droplet ejection performance |
Binary |
5 pl at 43.2 kHz |
6 pl at 43.2 kHz |
|
|
3 levels grey scale |
6, 12.5 pl at 21.6 kHz |
6.3, 12.3 pl at 21.6 kH |
||
|
4 levels grey scale |
3.8, 6.2, 9.3 pl at 21.6 kHz |
3.8, 6.1, 9.4 pl at 21.6 kHz |
||
|
Viscosity range |
5-7 mPa-s |
3-4 mPa-s |
||
|
Positioning Mechanism |
Reference hole |
|||
|
Shaking Machine Details
|
Media width |
0-600mm |
Machine weight |
GW 260KG,NW180KG |
|
Applicable media |
Nylon, chemical fiber, cotton, leather, swimsuit, diving suit, PVC, EVA, etc |
|||
|
Powder feeding control |
Powder shaking control, powder spreading control, direction and quantity control |
|||
|
Heating and Curing |
Front guide plate heating, upper drying and curing, double row cold air cooling function |
|||
|
Material transfer mode |
Mesh belt conveyor, guide belt type, automatic induction winding function |
|||
|
Electrical parameters |
Rated voltage 220V, rated current 30A, Rated power: 5.22kw, energy consumption: 2-3.5kw |
|||
|
Packing size |
Machine1985*1090*1080mm, package 1930*1120*1136mm |
|||
