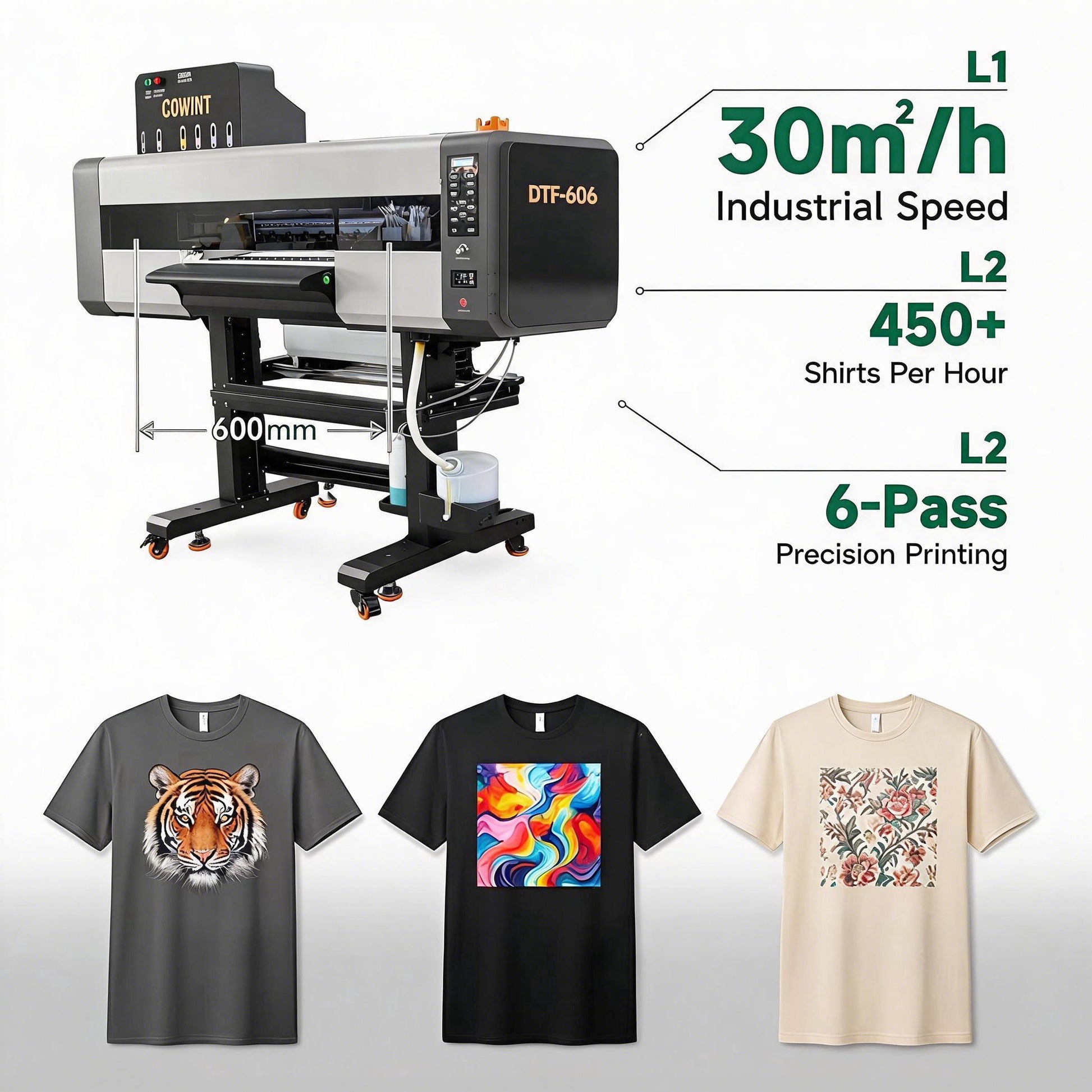

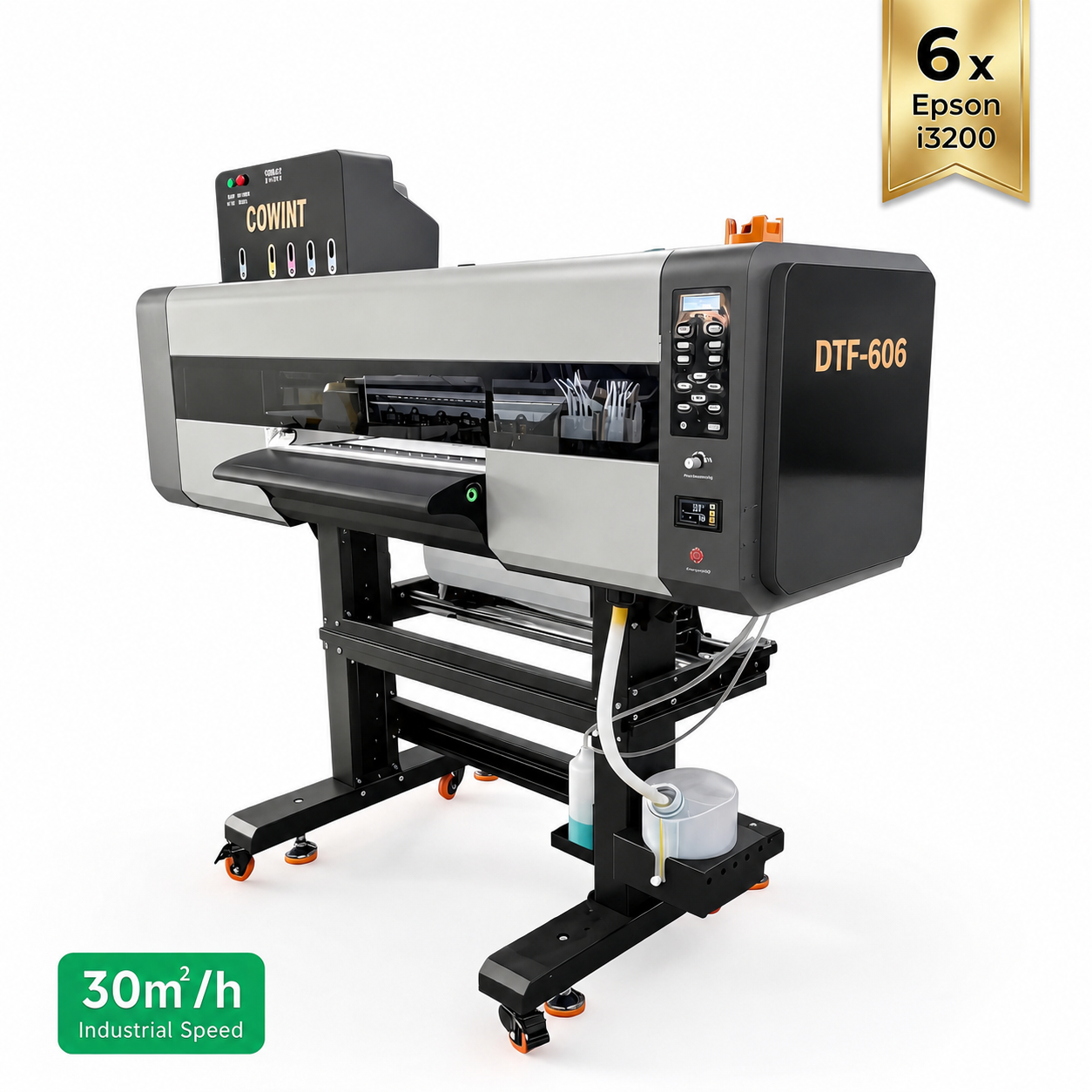

KW-606H 6-Head DTF Printer

Built for high-volume production, the KW-606H 6-Head DTF Printer is engineered to maximize output while maintaining exceptional print quality. Equipped with six genuine Epson i3200 printheads, advanced white ink circulation, and industrial-grade components, the KW-606H delivers up to 30 m²/hour of production speed—making it the ideal solution for commercial print shops, garment manufacturers, and businesses looking to scale.

From custom apparel and promotional products to bulk transfer production, the KW-606H combines speed, reliability, and precision to keep your business running efficiently.

Key Features

High-Speed Industrial Production

• Up to 30 m²/hour printing speed
• Produces 450+ shirts per hour
• 600mm (24") printing width
• Optimized 6-pass production mode for outstanding speed and image quality

Perfect for large-volume transfer production without sacrificing print consistency.

Six Genuine Epson i3200 Printheads

The KW-606H utilizes 6 Epson i3200 printheads, providing:

• Exceptional print precision
• Smooth gradients and vivid colors
• Faster multi-head production
• Consistent performance during long production runs

Designed for professional DTF printing with excellent detail and durability.

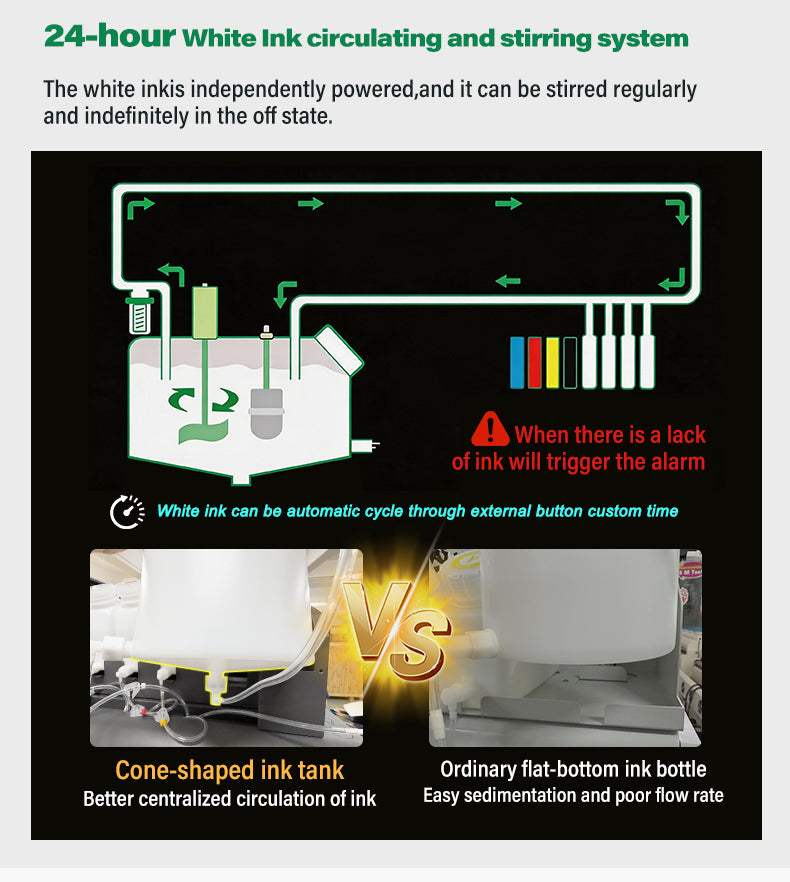

Intelligent White Ink Circulation System

White ink is the most critical component of DTF printing. The KW-606H features an independent 24-hour white ink circulation and stirring system that:

• Continuously circulates white ink—even when the printer is powered off
• Minimizes pigment settling
• Reduces nozzle clogging
• Extends printhead lifespan
• Includes low-ink detection and alarm protection

The specially designed cone-shaped ink tank promotes more efficient ink circulation compared to traditional flat-bottom bottles.

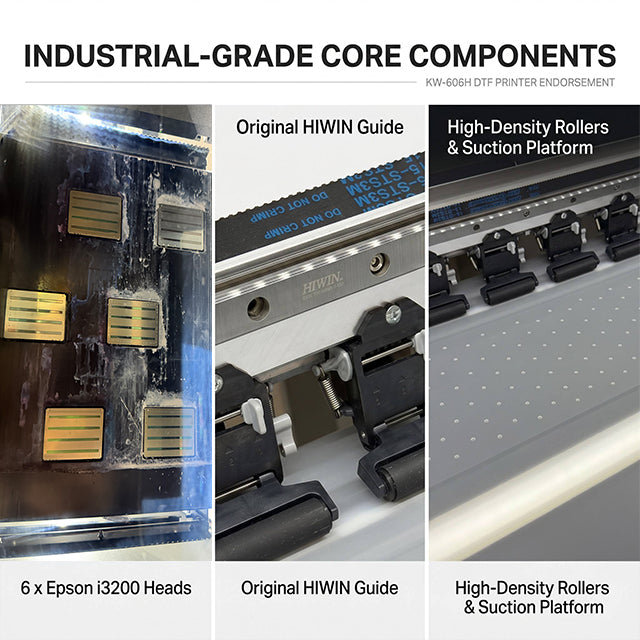

Industrial-Grade Motion System

Built with premium mechanical components for maximum stability:

• Genuine HIWIN linear guide rails
• High-density pinch rollers
• Precision vacuum suction platform
• Stable media feeding for wrinkle-free printing
• Improved registration accuracy during long print jobs

The result is smoother motion, higher precision, and consistent print quality.

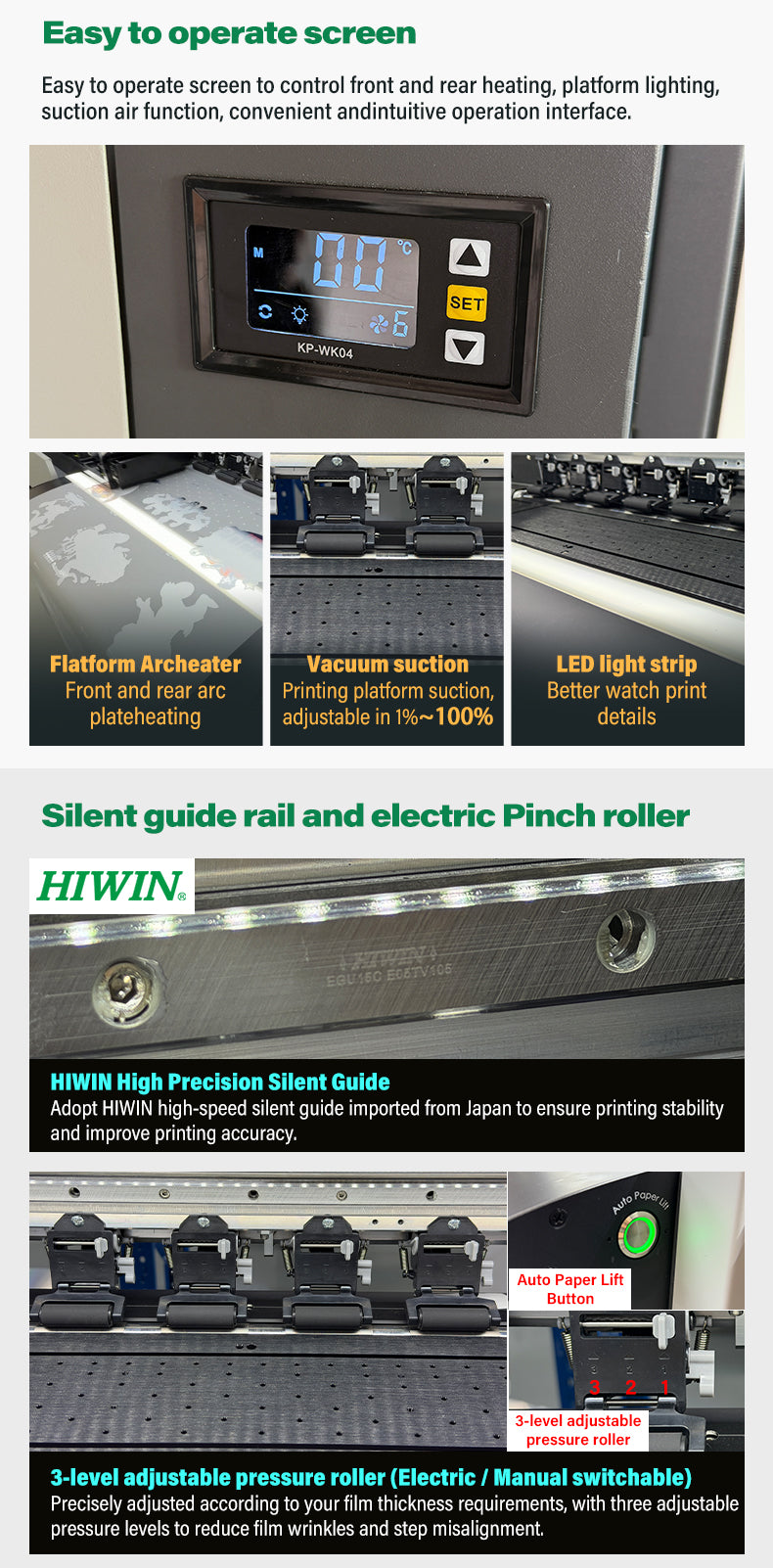

Smart Operating Interface

The easy-to-use control panel gives operators quick access to essential printer functions, including:

• Front & rear platen heating
• Adjustable vacuum suction (1–100%)
• LED platform lighting
• Temperature monitoring
• Convenient operation for both new and experienced users

Adjustable Electric Pinch Roller System

Designed to accommodate different PET film thicknesses:

• 3-level adjustable pressure
• Electric and manual switching
• Automatic paper lift function
• Helps reduce wrinkles and media misalignment

Ensures smooth and reliable media transport throughout production.

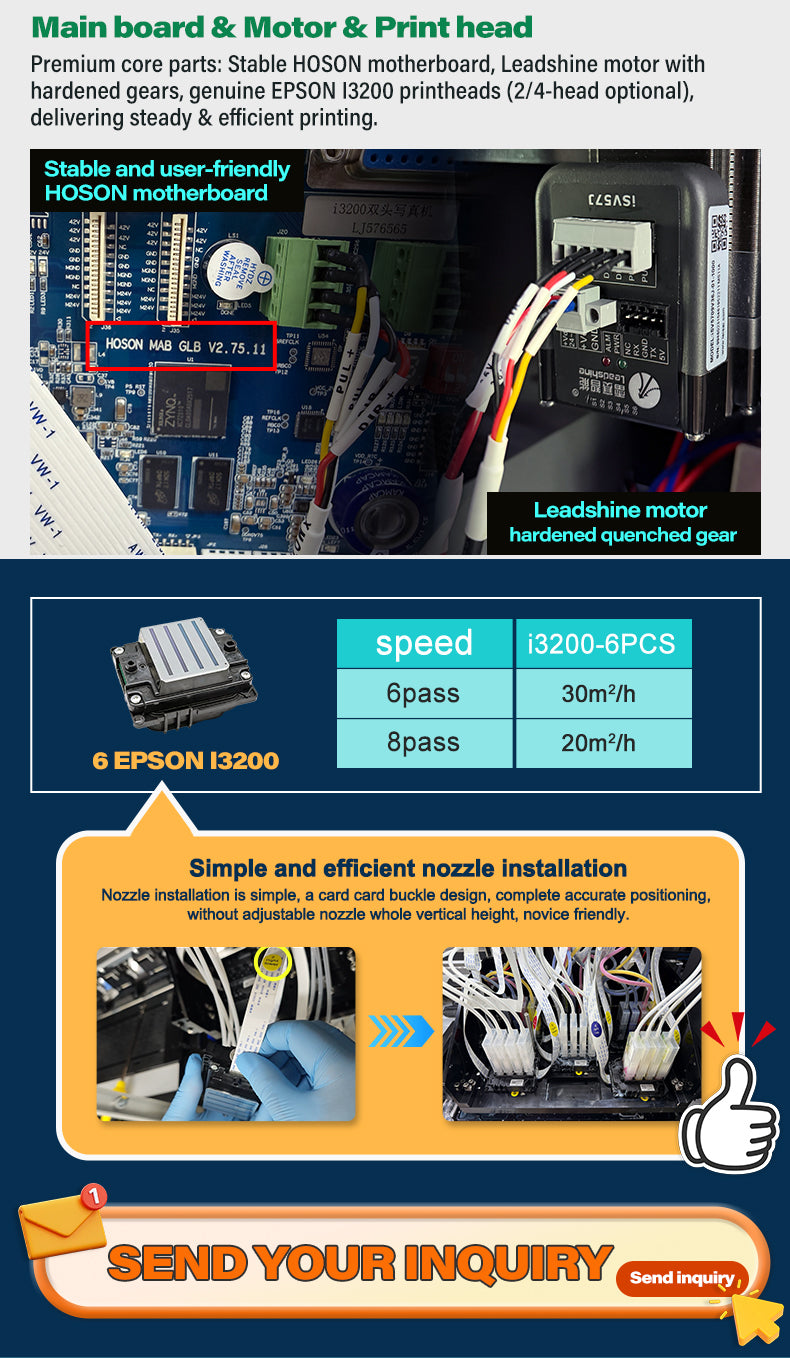

🔧 Industrial Electronics & Reliable Performance

Premium internal components include:

• Stable HOSON motherboard
• Leadshine industrial motor
• Hardened precision gears
• Reliable electrical architecture for continuous production

Together, these components deliver smooth operation, accurate positioning, and dependable long-term performance.

Easy Printhead Installation & Maintenance

Maintenance is simplified with:

• Quick-install printhead design
• Accurate positioning system
• Easy access for servicing
• Reduced downtime during replacement or maintenance

Ideal Applications

The KW-606H is perfect for producing:

• T-Shirts
• Hoodies
• Sweatshirts
• Sportswear
• Tote Bags
• Canvas Products
• Hats
• Promotional Apparel
• DTF Transfer Sheets
• Custom Merchandise

Compatible with cotton, polyester, blends, canvas, denim, and many other fabrics when used with DTF transfer film and heat pressing.

Technical Highlights
