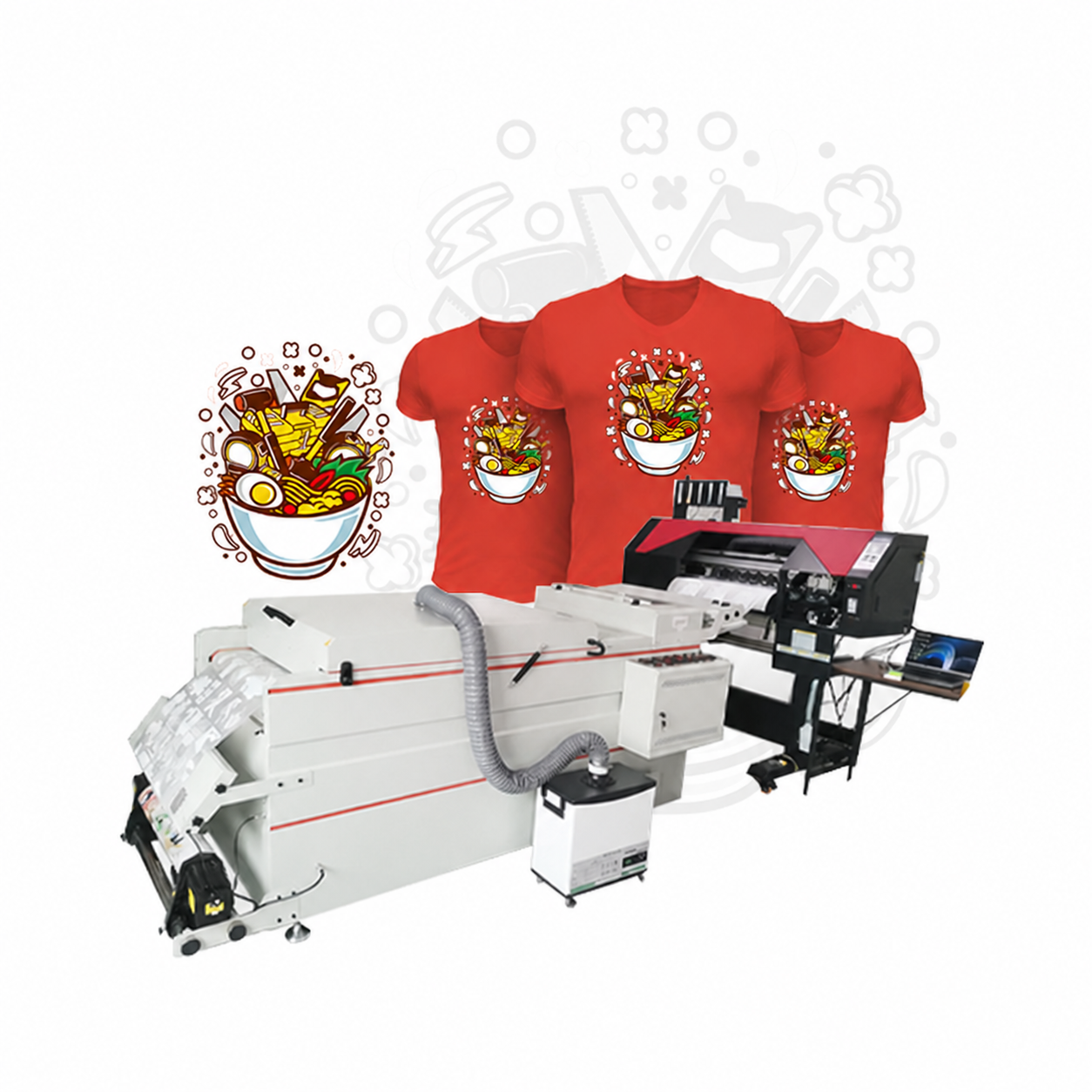

Dura printer has 4 staggered EPSON-I3200 print heads.High-precision imported aluminum alloy forming beam, the mechanical strength can be comparable to the imported machine! DTF Inkjet printer for t shirts can achieve high printing speed under small printing width. DTF printer is equipped with a white ink circulation stirring system, stable printing and long life of the print head. The mechanical parts and ink system used in digital offset hot stamping printer borrow large-format printers, so the equipment is reliable and has a long service life.
Package size :1990mm*870mm*780mm
Machine weight :160KG
Machine size :1700 mm* 850* 1560mm
Machine Name :Digital offset hot stamping printer
|
Product Name |
Digital Offset Heat Press Printer |
|
Machine Type |
KW-602 |
|
Nozzle Model |
EPSON-1080/EPSON-I3200 |
|
Number Of Nozzles |
1-2 (white color) |
|
Print Banner |
600MM |
|
Heating System |
Front, middle and rear heating |
|
Print Media |
PET heat transfer film/cold tear/hot tear |
|
Printing Software |
Maintop/photoprint |
|
Operating System |
Windows-7/Windows-10 |
|
Power Supply |
50HZ/60HZ, 20V/110V, 10A |
|
Network Interface |
Network cable/RJ-45 Gigabit network interface |
|
Color Management |
ICC or density curve |
|

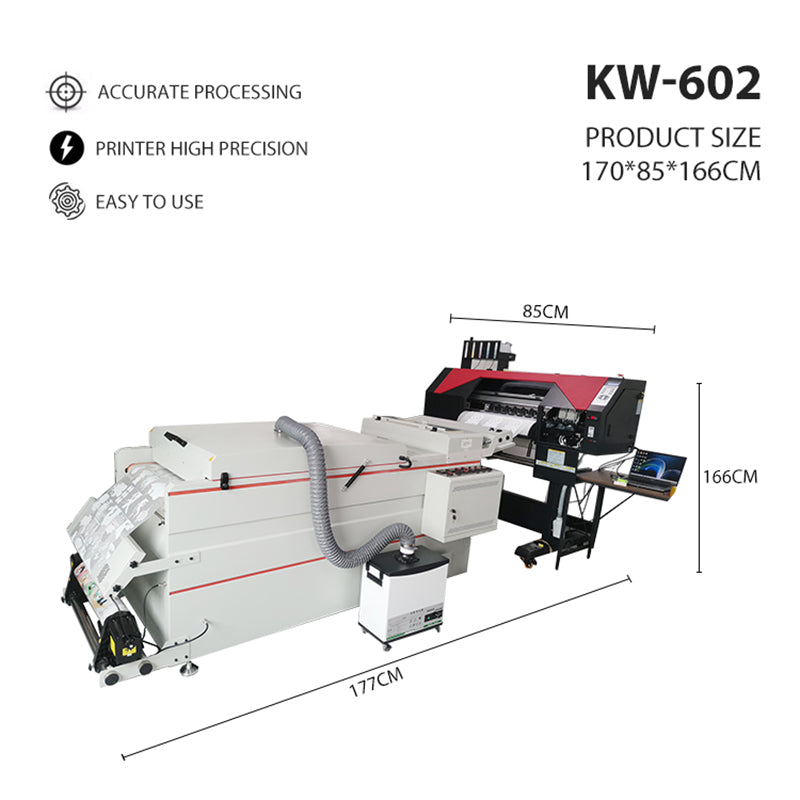

Assembly Machine Size |
170*85*166cm |
|
Machine Packing size |
177*86*68cm |
|
Machine Weight |
135KG |
|
Packing Weight |
150KG |
|
Ink |
Paint ink (environmental protection) Color: CMYK+W Compatible volume: 300ml |
|
Color gamut: 16.4million; ink supply: continuous ink supply, fastness: 4.5 |
|
|
Print Speed |
EPSON-1080 4pass\8m² 6pass\6m² 8pass\4m² |
|
EPSON-I3200 4pass\14.5m² 6pass\10m² 8pass\7m² |
